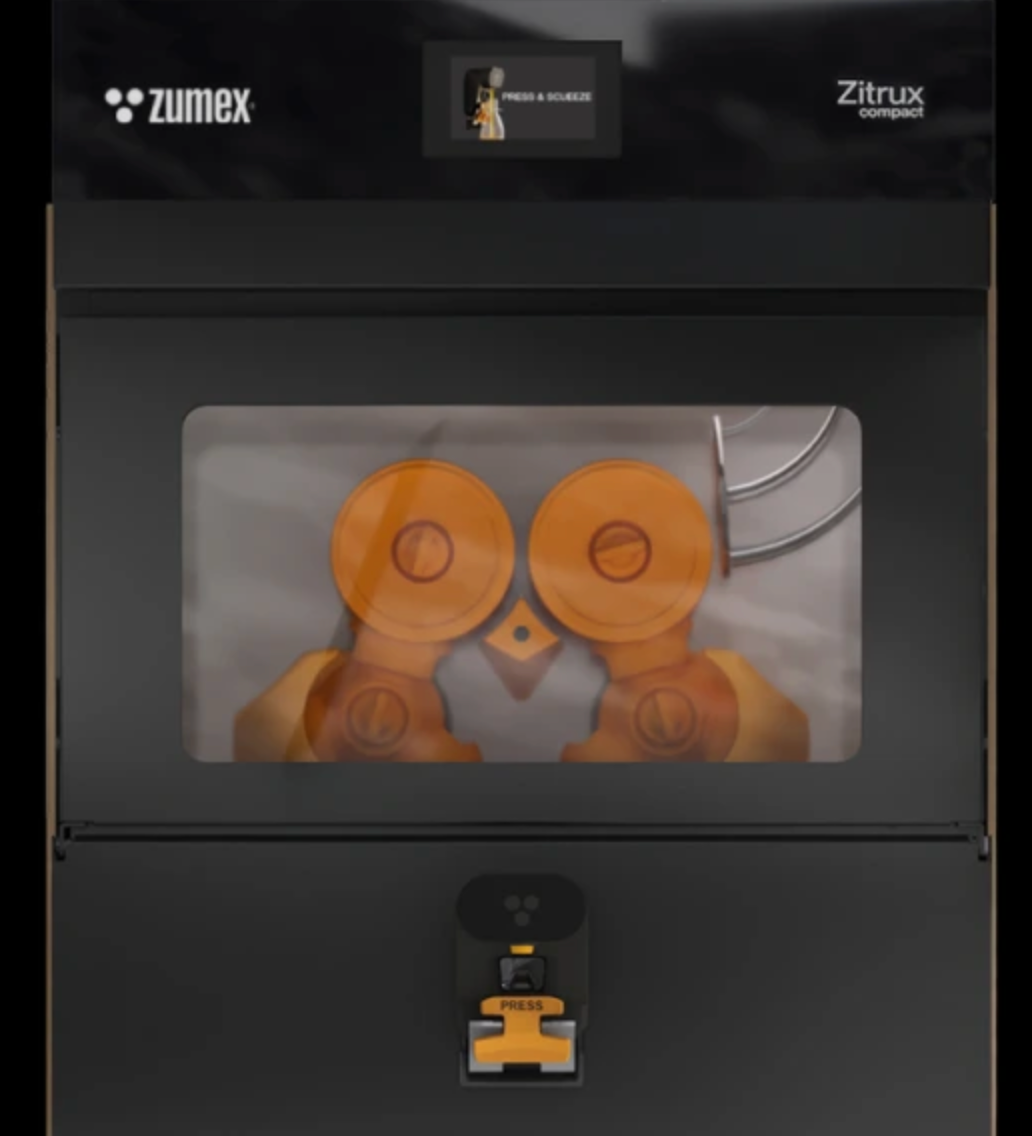

ZITRUX ®Compact - Self-Sanitizing Juicer by ZUMEX

Zitrux® by Zumex is the first machine that self-cleans and self-sanitise itself.

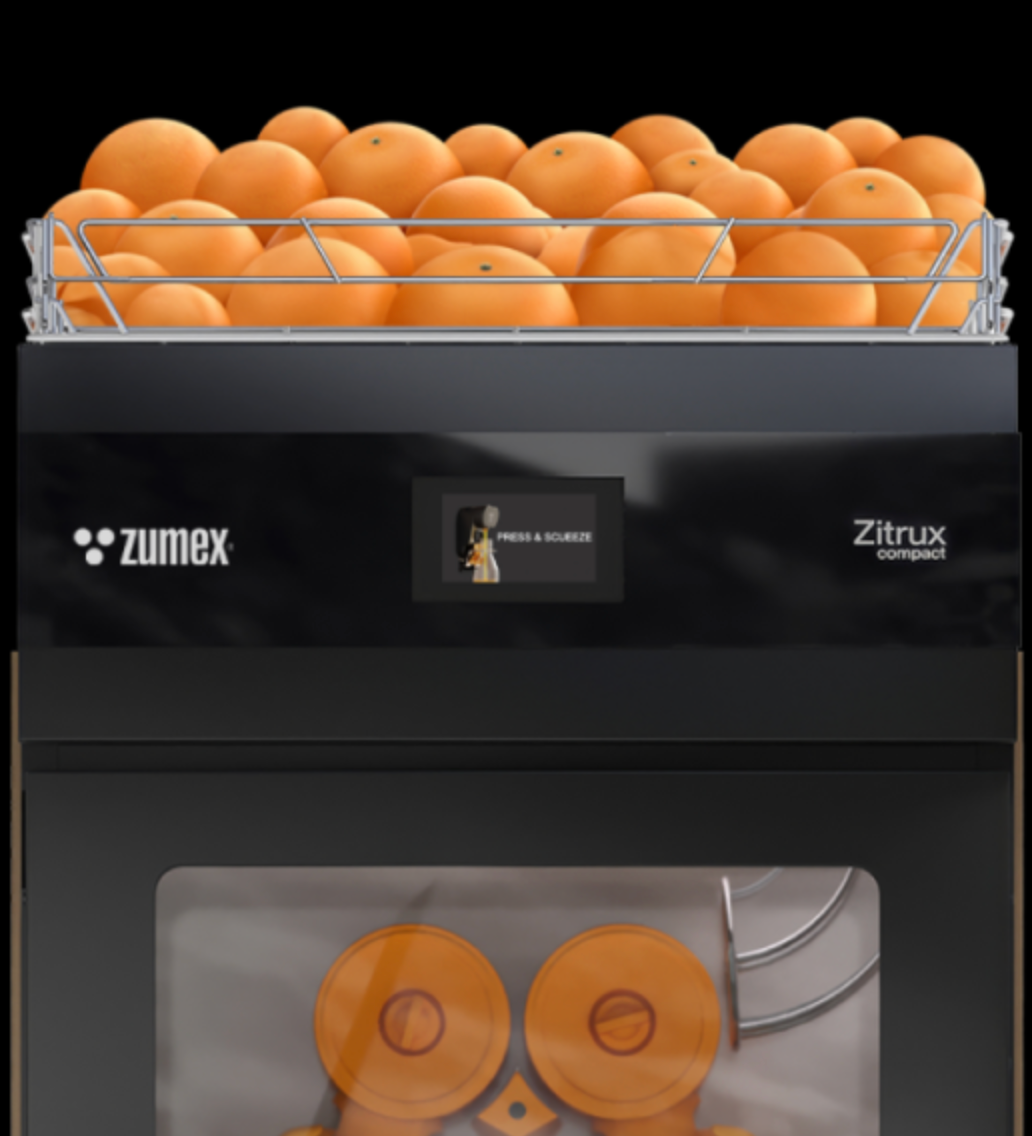

With up to 30 Kg capacity and an automatic rotating loading system, the oranges are easily seen and loaded on the top.

Integrated top performance system and a new automatic pulp-out system

There is no need to dismantle anything to get cleaned, just follow the instructions on the screen at the end of your day to get the squeezing area and tap sanitized.

A 100% closed area (no fruit flies), with a thermo-isolatedglass window to maximize the customer experience.

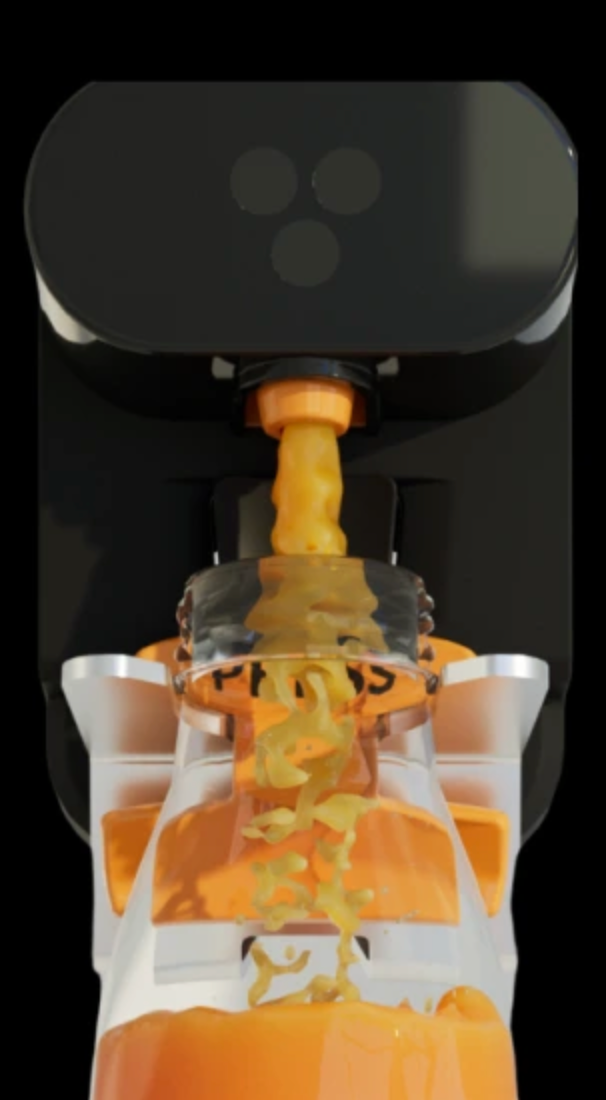

Volumetric tap
A new volumetric engineering & IOT (connected) tap
design that gets sanitized on every cleaning together with the squeezing area.

There is no need to be dismantled for cleaning. A fast and smooth outcoming juice flow and a Touchleas experience for the customer. PUSH & ENJOY !!

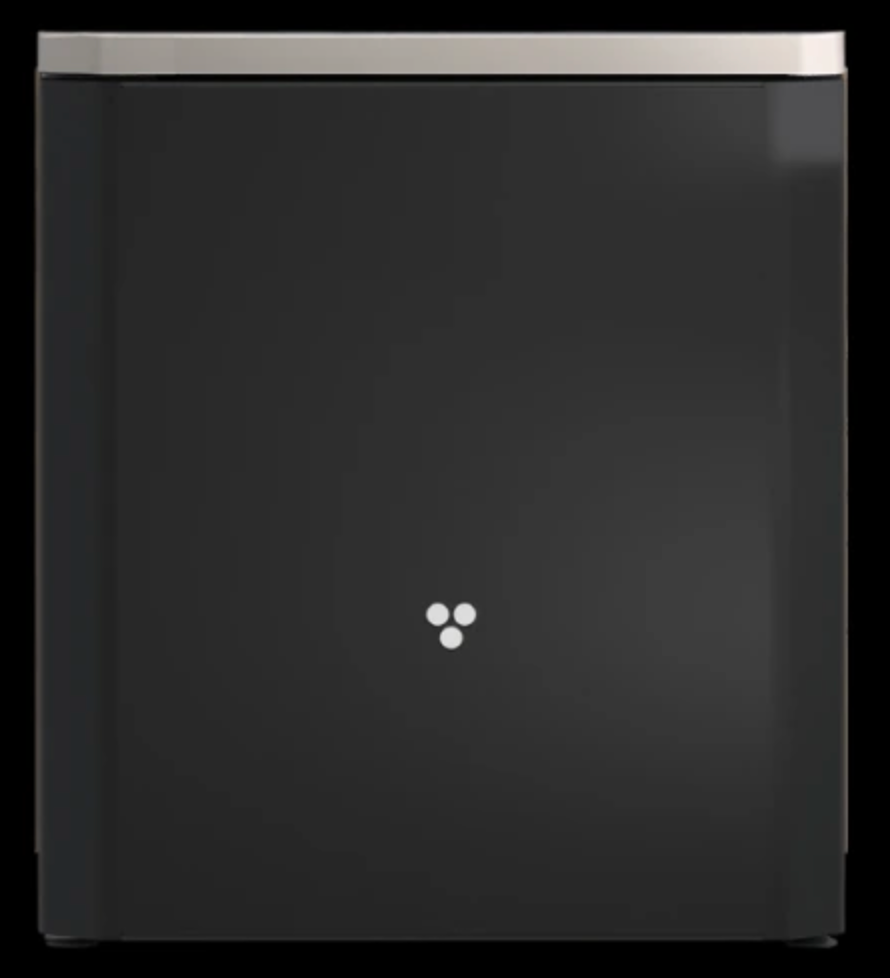

Waste area
A 52 L waste bin. The cleaning agent bottle for the
sanitization process is located behind the waste bin
and allows up tor 45 days cleaning cycles

Self-Sanitization

Water + Temperature + Cleaning agent
Detergent dose per cycle: 420 ml
Highest temperature while cleaning: 72º
Total cleaning cycle: 80 minutes
Total water consumption: 28 liters (vs 40-55 by hand):
Water Hardness Below 8 ºfH (Soft Water)
Water-in connector G3/4 female connector
Water-in pressure: Minimun 12 L / m 2,5 bar (250 kPa)
Water-out connector Flexible Hose Ø 20 mm
Noise < 70 dB

Cleaning

Juice unit cleaning Automatic Daily 80 mins
Peel chutes cleaning Manual Daily 2 mins
Feeder cleaning Manual Weekly 4 mina

Main advantages

For the SHOPPER
✓ More product availability and
absence of OOS
✓ A cleaner juicer (even the tap)
looking smart and premium
✓ A fast & smooth bottle filling
through the digital tap
✓ A new and fresh shopping
experience
✓ Full transparency from the
feeder to squeezing unit
✓ Total guarantee of hygiene ✓ Easy to use The most tasty and natural juice

For the STAFF

✓ Closed squeezing area,
minimizing cleaning areas
✓ The tap also gets sanitized,
minimizing cleaning zones
✓ Automatization of tedious and
awkward tasks
✓ Waste level alert system with
a gentle flashing alert
✓ More time to run alternative
tasks on the F&V areas
✓ Total guarantee of hygiene
✓ Easy to use & fast operations Totally user-friendly interface

For the RETAILER

✓ Extended selling hours → No
early stop for cleaning
✓ A big + on Food Safety
standards → Self-sanitizing
✓ Best in class yield (for +10%
more juice per fruit)
✓ 5-year warranty, NSF &
ISSOP certified.
✓ Fruit control IOT → Digitally-
controlled volumetric tap
✓ Helps to improve the store
appearance on cleaning
✓ Lower costs → No assembly-
disassembly
90% labour cost reduction

Return of investment

Big savings with Zitrux Range by Zumex
Estimated savings (time Vs. Speed S +)
Less loading / unloading time 11%
Less fruit costs extra yield 16%
Less cleaning time 52%
Less out of stocks 8%
Extender sale hours 10%
Less maintance costs 3%
Save +10.000 € / year Vs. Conventional juicers
Percentage savings in a supermarket with a Zumex Zitrux® or Zitrux Compact machine models.

The mentioned savings potentials are average values for a European supermarket with a gross employee costs of 30€/hour, a 7 years-lifespan and 320 annual working days. An orange cost of 0,7/kg, a 1L empty bottle cost of 0,3€/u and a selling price of 4,99 €/L. (1 L of juice is in average 2.2 Kg of oranges). Zitrux range requires aprox. 10 min daily labor hand Vs. 1h+ on conventional juicers

Video DiscoverHow it works

Download  detailed tech sheet here
